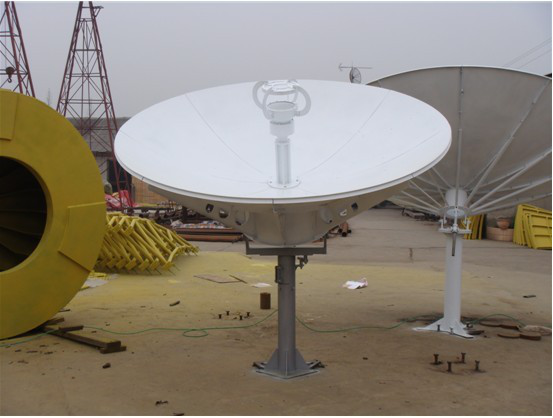

1.8米卫星通信天线
|
|
1.8m Offset-Feed Antenna, Technical Specifications
|
|
Electric Specifications
|
|
Ku-band Reception
|
Ku-band Transmission
|
|
电气指标
|
|
Ku-接收
|
Ku-发射
|
|
Frequency (GHz)
|
频率
|
12.25－12.75
|
14-14.5
|
|
Gain (dB)
|
增益
|
45.2
|
46.4
|
|
SWR
|
驻波比
|
1.25：1
|
1.25：1
|
|
Beamwidth:-3dB
|
波束宽度
|
0.47
|
0.38
|
|
Antenna Noise Temperature
|
天线噪声温度
|
2-port feed
|
|
|
|
|
2-端口 馈源
|
|
10° Elevation
|
|
50
|
|
20° Elevation
|
|
44
|
|
40° Elevation
|
|
38
|
|
Power Handling Capability
|
功率容量
|
|
1Kw/port
|
|
Feed Interface
|
接口形式
|
|
WR-75
|
|
Feed Insertion (dB)
|
馈源插损
|
0.25
|
0.25
|
|
T-R isolation (dB)
|
收发隔离
|
|
|
|
|
|
|
Cross Polarization Isolation (dB)
|
交叉极化隔离
|
|
|
（ 0 dB）
|
35
|
35
|
|
(1 dB)
|
33
|
33
|
|
Axial ratio, (dB)
|
轴比
|
0.5
|
0.5
|
|
Sidelobe envelope
|
副瓣包络
|
CCIR.580-4
|
|
|
Mechanical Specifications
|
机械性能
|
|
|
Azimuth Range
|
方位范围
|
±60°
|
|
Elevation Range
|
俯仰范围
|
5° to 90°
|
|
Foundation Parts
|
预埋件
|
|
|
Surface Accuracy
|
表面精度
|
0.3mm
|
|
Coating
|
喷漆
|
Spray-paint(white)
|
|
Environmental Specifications
|
环境特性
|
|
|
Operating Wind Speed
|
工作风速
|
20m/s (72km/h)
|
|
|
To 27m/s (97km/h)
|
|
Max Wind Speed
|
生存特性
|
55.6m/s (200km/h)
|
|
Ambient Temperature
|
温度
|
－ 30° to 60°
|
|
Relative Humidity
|
湿度
|
0% to
|
|
Vibrations
|
地震
|
0.3G, horizontal
|
|
|
|
0.15G, vertical
|
|
|
|
